Installing Milvus (AWS Linux + Docker Compose)

1. Overview​

  • Install AWS Linux
  • Install Mulvus Compose
  • Install Attu

2. Install Docker​

2.1 Install and Start Docker Engine​

# 1. Package System Update
> dnf update -y

# 2. Installing the Built-in Docker Package
> dnf install -y docker

# 4. Verify that Docker is running properly (if the version is displayed, it was successful)
> docker --version
Docker version 25.0.14, build 0bab007
>

2.2 Installing Docker Compose (Plugin Method)​

The default repository for Amazon Linux 2023 does not include the docker-compose plugin.

Install docker-compose separately.

# 1. Create a Docker CLI plugin folder
> mkdir -p /usr/local/lib/docker/cli-plugins

# 2. Download the latest version of Docker Compose for Linux from the official GitHub repository
> curl -SL "https://github.com/docker/compose/releases/latest/download/docker-compose-linux-$(uname -m)" -o /usr/local/lib/docker/cli-plugins/docker-compose

# 3. Grant Execution Permissions
> chmod +x /usr/local/lib/docker/cli-plugins/docker-compose

# 4. Verifying that Docker Compose is Working Properly
> docker compose version
Docker Compose version v5.1.4
> systemctl start docker
> systemctl enable docker

  1. Install Milvus

3.1 Install Mulvus​

> mkdir -p /usr/service/milvus-standalone
> cd /usr/service/milvus-standalone
> wget https://github.com/milvus-io/milvus/releases/download/v2.6.18/milvus-standalone-docker-compose.yml -O docker-compose.yml
> sudo docker compose up -d
Creating milvus-etcd  ... done
Creating milvus-minio ... done
Creating milvus-standalone ... done

# Check Installation History
> docker compose ps
WARN[0000] /usr/service/milvus-standalone/docker-compose.yml: the attribute `version` is obsolete, it will be ignored, please remove it to avoid potential confusion
NAME                IMAGE                                      COMMAND                  SERVICE      CREATED          STATUS                    PORTS
milvus-etcd         quay.io/coreos/etcd:v3.5.25                "etcd -advertise-cli…"   etcd         44 seconds ago   Up 43 seconds (healthy)   2379-2380/tcp
milvus-minio        minio/minio:RELEASE.2024-12-18T13-15-44Z   "/usr/bin/docker-ent…"   minio        44 seconds ago   Up 43 seconds (healthy)   0.0.0.0:9000-9001->9000-9001/tcp, [::]:9000-9001->9000-9001/tcp
milvus-standalone   milvusdb/milvus:v2.6.18                    "/tini -- milvus run…"   standalone   44 seconds ago   Up 42 seconds (healthy)   0.0.0.0:9091->9091/tcp, [::]:9091->9091/tcp, 0.0.0.0:19530->19530/tcp, [::]:19530->19530/tcp

3.2 Install Attu​

> docker run -d -p 8000:3000 --name milvus-attu --restart always zilliz/attu:v2.4.11
>  docker ps
CONTAINER ID   IMAGE                                      COMMAND                  CREATED          STATUS                   PORTS                                                                                      NAMES
ec239dd454e8   zilliz/attu:v2.4.11                        "docker-entrypoint.s…"   43 seconds ago   Up 40 seconds            0.0.0.0:8000->3000/tcp, :::8000->3000/tcp                                                  milvus-attu
99ffb6e7f8ef   milvusdb/milvus:v2.6.18                    "/tini -- milvus run…"   7 minutes ago    Up 7 minutes (healthy)   0.0.0.0:9091->9091/tcp, :::9091->9091/tcp, 0.0.0.0:19530->19530/tcp, :::19530->19530/tcp   milvus-standalone
affc1daa2946   quay.io/coreos/etcd:v3.5.25                "etcd -advertise-cli…"   7 minutes ago    Up 7 minutes (healthy)   2379-2380/tcp                                                                              milvus-etcd
8a3195901674   minio/minio:RELEASE.2024-12-18T13-15-44Z   "/usr/bin/docker-ent…"   7 minutes ago    Up 7 minutes (healthy)   0.0.0.0:9000-9001->9000-9001/tcp, :::9000-9001->9000-9001/tcp                              milvus-minio


3.3 Configure for Automatic Startup​

Restart Docker​

> systemctl enable docker

Restart Milvus​

Services bundled with Docker Compose often fail to start automatically when the server is restarted.

Verify that the restart: always option is included for each service in the official docker-compose.yml file and apply it.

> cd /usr/service/milvus-standalone  # The path to the folder where Compose was located earlier
> vi docker-compose.yml
# Example of editing docker-compose.yml
services:
  etcd:
    container_name: milvus-etcd
    image: quay.io/coreos/etcd:v3.5.25
    restart: always  # 👈 Add this here!
    # ... (rest omitted) ...

  minio:
    container_name: milvus-minio
    image: minio/minio:RELEASE.2024-12-18T13-15-44Z
    restart: always  # 👈 Add this here!
    # ... (rest omitted) ...

  standalone:
    container_name: milvus-standalone
    image: milvusdb/milvus:v2.6.18
    restart: always  # 👈 Add this here!
    # ... (rest omitted) ...

Restarting Attu​

# Check the "restart always" command below
> docker run -d -p 8000:3000 --name milvus-attu --restart always zilliz/attu:v2.4.11

4. Configuration​

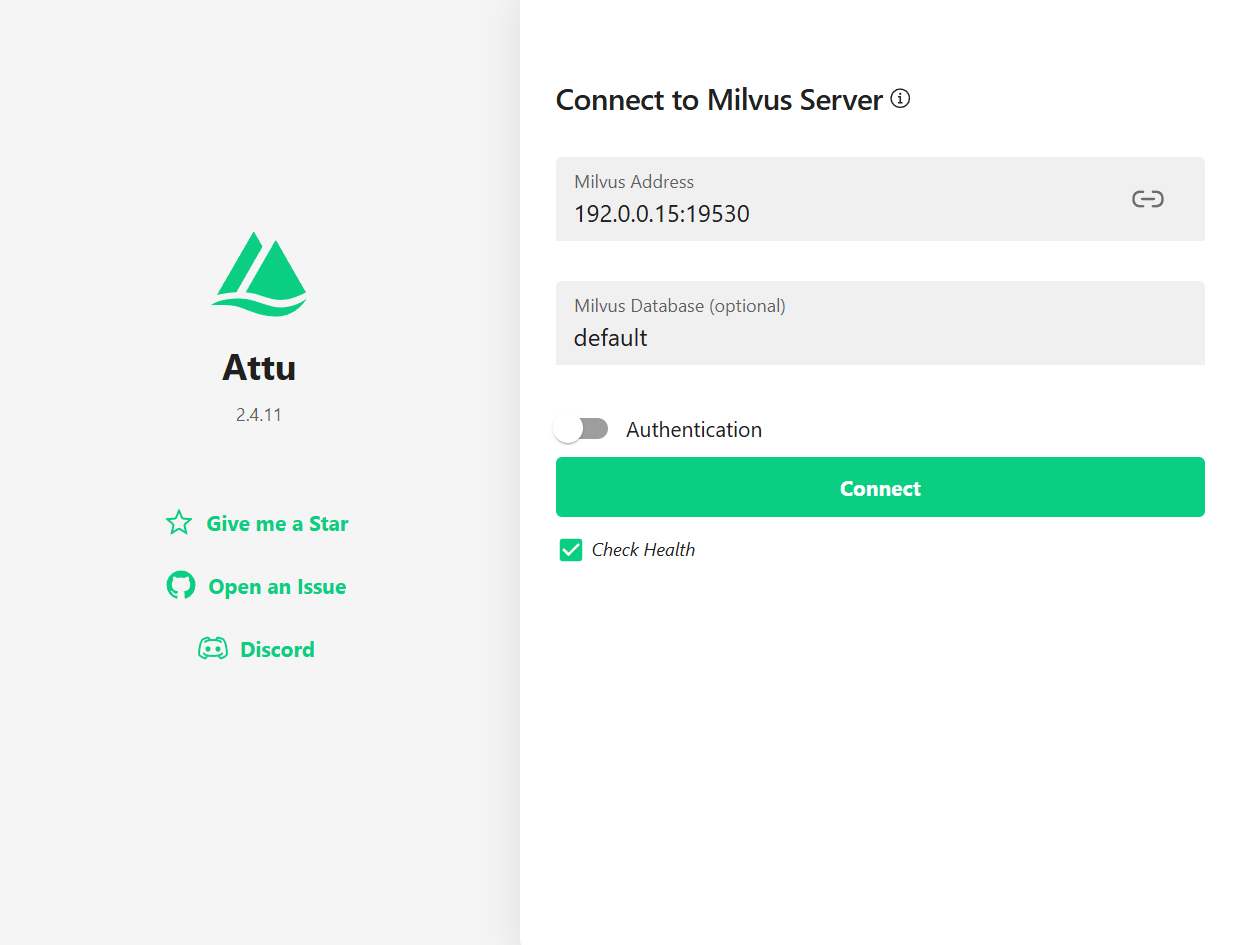

4.1 Attu Configuration​

  • Open the AWS firewall
  • Access: http://<host_ip>:8000/
  • Since the services are isolated from each other via Docker, 127.0.0.1 will not work.


4.2 Data Backup Directory​

# Regular Backups Are Necessary
> /usr/service/milvus-standalone/volumes
```</host_ip>
